Gromacs_py basic example

Here is an example of a short simulation of the SH3 domain of phospholipase Cγ1. Five successive steps are used:

  1. Topologie creation using GmxSys.prepare_top().
  2. Minimisation of the structure using GmxSys.em_2_steps().
  3. Solvation of the system using GmxSys.solvate_add_ions().
  4. Equilibration of the system using GmxSys.em_equi_three_step_iter_error().
  5. Production run using GmxSys.production().

Import

[1]:

import sys
import os
import urllib.request
import pandas as pd
import matplotlib
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns

# Gromacs_py import
sys.path.insert(0, os.path.abspath('../../..'))
import gromacs_py.gromacs.gmx5 as gmx

Gromacs version is 2018.3
FORCEFIELD_PATH = /home/murail/Documents/Code/gromacs_py/gromacs_py/gromacs/template

Simulation setup

[16]:

# Setup data location
DATA_OUT = 'data_sim'
PDB_ID = '1Y0M'

# System Setup
vsite='hydrogens'
ion_C = 0.15
sys_top_folder = os.path.join(DATA_OUT, 'sys_top')

# Energy Minimisation
em_folder = os.path.join(DATA_OUT, 'em')
em_sys_folder = os.path.join(DATA_OUT, 'sys_em')
em_step_number = 5000

# Equillibration
equi_folder = os.path.join(DATA_OUT, 'sys_equi')
HA_time = 0.5
CA_time = 1.0
CA_LOW_time = 2.0

dt_HA = 0.002
dt = 0.005

HA_step = 1000 * HA_time / dt_HA
CA_step = 1000 * CA_time / dt
CA_LOW_step = 1000 * CA_LOW_time / dt

# Production
prod_folder = os.path.join(DATA_OUT, 'sys_prod')
prod_time = 10.0

prod_step = 1000 * prod_time / dt

Get PDB file from the rcsb.org website

[3]:

os.makedirs(DATA_OUT, exist_ok = True)

raw_pdb = urllib.request.urlretrieve('http://files.rcsb.org/download/{}.pdb'.format(PDB_ID),
                           '{}/{}.pdb'.format(DATA_OUT, PDB_ID))

Define the simulation system

[4]:

md_sys = gmx.GmxSys(name=PDB_ID, coor_file=raw_pdb[0])
md_sys.display()


name         : 1Y0M
coor_file    : data_sim/1Y0M.pdb
nt           : 0
ntmpi        : 0
sys_history  : 0

1. Create topology:

[5]:

md_sys.prepare_top(out_folder=os.path.join(DATA_OUT, 'prot_top'), vsite=vsite)
md_sys.create_box(dist=1.0, box_type="dodecahedron", check_file_out=True)

Succeed to read file ../1Y0M.pdb ,  648 atoms found
Succeed to save file tmp_pdb2pqr.pdb
pdb2pqr.py --ff CHARMM --ffout CHARMM --chain tmp_pdb2pqr.pdb 00_1Y0M.pqr
Succeed to read file 00_1Y0M.pqr ,  996 atoms found
Chain: A  Residue: 0 to 60
Succeed to save file 01_1Y0M_good_his.pdb
-Create topologie
gmx pdb2gmx -f 01_1Y0M_good_his.pdb -o 1Y0M_pdb2gmx.pdb -p 1Y0M_pdb2gmx.top -i 1Y0M_posre.itp -water tip3p -ff charmm36-jul2017 -ignh -vsite hydrogens
Molecule topologie present in 1Y0M_pdb2gmx.top , extract the topologie in a separate file: 1Y0M_pdb2gmx.itp
Protein_chain_A
-ITP file: 1Y0M_pdb2gmx.itp
-molecules defined in the itp file:
* Protein_chain_A
Rewrite topologie: 1Y0M_pdb2gmx.top
-Create pbc box
gmx editconf -f data_sim/prot_top/1Y0M_pdb2gmx.pdb -o data_sim/prot_top/1Y0M_pdb2gmx_box.pdb -bt dodecahedron -d 1.0

2. Energy minimisation

[6]:

md_sys.em_2_steps(out_folder=em_folder,
                  no_constr_nsteps=em_step_number,
                  constr_nsteps=em_step_number,
                  posres="",
                  create_box_flag=False)

-Create the tpr file  Init_em_1Y0M.tpr
gmx grompp -f Init_em_1Y0M.mdp -c ../prot_top/1Y0M_pdb2gmx_box.pdb -r ../prot_top/1Y0M_pdb2gmx_box.pdb -p ../prot_top/1Y0M_pdb2gmx.top -po out_Init_em_1Y0M.mdp -o Init_em_1Y0M.tpr -maxwarn 1
-Launch the simulation Init_em_1Y0M.tpr
gmx mdrun -s Init_em_1Y0M.tpr -deffnm Init_em_1Y0M -nt 0 -ntmpi 0 -nsteps -2 -nocopyright
-Create the tpr file  1Y0M.tpr
gmx grompp -f 1Y0M.mdp -c Init_em_1Y0M.gro -r Init_em_1Y0M.gro -p ../prot_top/1Y0M_pdb2gmx.top -po out_1Y0M.mdp -o 1Y0M.tpr -maxwarn 1
-Launch the simulation 1Y0M.tpr
gmx mdrun -s 1Y0M.tpr -deffnm 1Y0M -nt 0 -ntmpi 0 -nsteps -2 -nocopyright

Plot energy:

[7]:

ener_pd_1 = md_sys.sys_history[-1].get_ener(selection_list=['Potential'])
ener_pd_2 = md_sys.get_ener(selection_list=['Potential'])

ener_pd_1['label'] = 'no bond constr'
ener_pd_2['label'] = 'bond constr'

ener_pd = pd.concat([ener_pd_1, ener_pd_2])

ener_pd.time = np.arange(len(ener_pd))

#ax = ener_pd.plot(x='time')
ax = sns.lineplot(x="time", y="Potential",
             hue="label",
             data=ener_pd)
ax.set_xlabel('step')
ax.set_ylabel('energy (KJ/mol)')

-Extract energy
gmx energy -f data_sim/em/Init_em_1Y0M.edr -o tmp.xvg
-Extract energy
gmx energy -f data_sim/em/1Y0M.edr -o tmp.xvg

[7]:

Text(0, 0.5, 'energy (KJ/mol)')
../_images/notebook_00_basic_example_14_2.png

3. Solvation (water and \(Na^{+} Cl^{-}\))

[8]:

md_sys.solvate_add_ions(out_folder=sys_top_folder,
                        ion_C=ion_C)
md_sys.display()


-Create pbc box
gmx editconf -f data_sim/em/1Y0M.gro -o data_sim/em/1Y0M_box.pdb -bt dodecahedron -d 1.1
-Solvate the pbc box
Copy topologie file and dependancies
Copy topologie file and dependancies
-Create the tpr file  genion_1Y0M_water_ion.tpr
gmx grompp -f ../../../../gromacs/template/mini.mdp -c 1Y0M_water.pdb -r 1Y0M_water.pdb -p 1Y0M_water_ion.top -po out_mini.mdp -o genion_1Y0M_water_ion.tpr -maxwarn 1
-Add ions to the system with an ionic concentration of 0.15 M , sytem charge = 0.0 water num= 11860
Add ions : NA : 32   CL : 32
gmx genion -s genion_1Y0M_water_ion.tpr -p 1Y0M_water_ion.top -o 1Y0M_water_ion.gro -np 32 -pname NA -nn 32 -nname CL
name         : 1Y0M
sim_name     : genion_1Y0M_water_ion
coor_file    : data_sim/sys_top/1Y0M_water_ion.gro
top_file     : data_sim/sys_top/1Y0M_water_ion.top
tpr          : data_sim/sys_top/genion_1Y0M_water_ion.tpr
mdp          : ../../gromacs/template/mini.mdp
xtc          : data_sim/em/1Y0M.trr
edr          : data_sim/em/1Y0M.edr
log          : data_sim/em/1Y0M.log
nt           : 0
ntmpi        : 0
sys_history  : 2

4. System minimisation and equilibration

[9]:

md_sys.em_equi_three_step_iter_error(out_folder=equi_folder,
                                     no_constr_nsteps=em_step_number,
                                     constr_nsteps=em_step_number,
                                     nsteps_HA=HA_step,
                                     nsteps_CA=CA_step,
                                     nsteps_CA_LOW=CA_LOW_step,
                                     dt=dt, dt_HA=dt_HA)


-Create the tpr file  Init_em_1Y0M.tpr
gmx grompp -f Init_em_1Y0M.mdp -c ../../sys_top/1Y0M_water_ion.gro -r ../../sys_top/1Y0M_water_ion.gro -p ../../sys_top/1Y0M_water_ion.top -po out_Init_em_1Y0M.mdp -o Init_em_1Y0M.tpr -maxwarn 1
-Launch the simulation Init_em_1Y0M.tpr
gmx mdrun -s Init_em_1Y0M.tpr -deffnm Init_em_1Y0M -nt 0 -ntmpi 0 -nsteps -2 -nocopyright
-Create the tpr file  1Y0M.tpr
gmx grompp -f 1Y0M.mdp -c Init_em_1Y0M.gro -r Init_em_1Y0M.gro -p ../../sys_top/1Y0M_water_ion.top -po out_1Y0M.mdp -o 1Y0M.tpr -maxwarn 1
-Launch the simulation 1Y0M.tpr
gmx mdrun -s 1Y0M.tpr -deffnm 1Y0M -nt 0 -ntmpi 0 -nsteps -2 -nocopyright
-Convert trj/coor
gmx trjconv -f data_sim/sys_equi/sys_em/1Y0M.gro -o data_sim/sys_equi/sys_em/1Y0M_compact.pdb -s data_sim/sys_equi/sys_em/1Y0M.tpr -ur compact -pbc mol
-Create the tpr file  equi_HA_1Y0M.tpr
gmx grompp -f equi_HA_1Y0M.mdp -c ../../sys_em/1Y0M_compact.pdb -r ../../sys_em/1Y0M_compact.pdb -p ../../../sys_top/1Y0M_water_ion.top -po out_equi_HA_1Y0M.mdp -o equi_HA_1Y0M.tpr -maxwarn 0
-Launch the simulation equi_HA_1Y0M.tpr
gmx mdrun -s equi_HA_1Y0M.tpr -deffnm equi_HA_1Y0M -nt 0 -ntmpi 0 -nsteps -2 -nocopyright
-Create the tpr file  equi_CA_1Y0M.tpr
gmx grompp -f equi_CA_1Y0M.mdp -c ../00_equi_HA/equi_HA_1Y0M.gro -r ../../sys_em/1Y0M_compact.pdb -p ../../../sys_top/1Y0M_water_ion.top -po out_equi_CA_1Y0M.mdp -o equi_CA_1Y0M.tpr -maxwarn 0
-Launch the simulation equi_CA_1Y0M.tpr
gmx mdrun -s equi_CA_1Y0M.tpr -deffnm equi_CA_1Y0M -nt 0 -ntmpi 0 -nsteps -2 -nocopyright
-Create the tpr file  equi_CA_LOW_1Y0M.tpr
gmx grompp -f equi_CA_LOW_1Y0M.mdp -c ../01_equi_CA/equi_CA_1Y0M.gro -r ../../sys_em/1Y0M_compact.pdb -p ../../../sys_top/1Y0M_water_ion.top -po out_equi_CA_LOW_1Y0M.mdp -o equi_CA_LOW_1Y0M.tpr -maxwarn 0
-Launch the simulation equi_CA_LOW_1Y0M.tpr
gmx mdrun -s equi_CA_LOW_1Y0M.tpr -deffnm equi_CA_LOW_1Y0M -nt 0 -ntmpi 0 -nsteps -2 -nocopyright

Display history and plot temperature

[11]:

md_sys.display_history()

State -7:

name         : 1Y0M
coor_file    : data_sim/prot_top/1Y0M_pdb2gmx_box.pdb
top_file     : data_sim/prot_top/1Y0M_pdb2gmx.top
nt           : 0
ntmpi        : 0
sys_history  : 0

State -6:

name         : 1Y0M
sim_name     : Init_em_1Y0M
coor_file    : data_sim/em/Init_em_1Y0M.gro
top_file     : data_sim/prot_top/1Y0M_pdb2gmx.top
tpr          : data_sim/em/Init_em_1Y0M.tpr
mdp          : data_sim/em/Init_em_1Y0M.mdp
xtc          : data_sim/em/Init_em_1Y0M.trr
edr          : data_sim/em/Init_em_1Y0M.edr
log          : data_sim/em/Init_em_1Y0M.log
nt           : 0
ntmpi        : 0
sys_history  : 0

State -5:

name         : 1Y0M
sim_name     : genion_1Y0M_water_ion
coor_file    : data_sim/sys_top/1Y0M_water_ion.gro
top_file     : data_sim/sys_top/1Y0M_water_ion.top
tpr          : data_sim/sys_top/genion_1Y0M_water_ion.tpr
mdp          : ../../gromacs/template/mini.mdp
xtc          : data_sim/em/1Y0M.trr
edr          : data_sim/em/1Y0M.edr
log          : data_sim/em/1Y0M.log
nt           : 0
ntmpi        : 0
sys_history  : 0

State -4:

name         : 1Y0M
sim_name     : Init_em_1Y0M
coor_file    : data_sim/sys_equi/sys_em/Init_em_1Y0M.gro
top_file     : data_sim/sys_top/1Y0M_water_ion.top
tpr          : data_sim/sys_equi/sys_em/Init_em_1Y0M.tpr
mdp          : data_sim/sys_equi/sys_em/Init_em_1Y0M.mdp
xtc          : data_sim/sys_equi/sys_em/Init_em_1Y0M.trr
edr          : data_sim/sys_equi/sys_em/Init_em_1Y0M.edr
log          : data_sim/sys_equi/sys_em/Init_em_1Y0M.log
nt           : 0
ntmpi        : 0
sys_history  : 0

State -3:

name         : 1Y0M
sim_name     : 1Y0M
coor_file    : data_sim/sys_equi/sys_em/1Y0M_compact.pdb
top_file     : data_sim/sys_top/1Y0M_water_ion.top
tpr          : data_sim/sys_equi/sys_em/1Y0M.tpr
mdp          : data_sim/sys_equi/sys_em/1Y0M.mdp
xtc          : data_sim/sys_equi/sys_em/1Y0M.trr
edr          : data_sim/sys_equi/sys_em/1Y0M.edr
log          : data_sim/sys_equi/sys_em/1Y0M.log
nt           : 0
ntmpi        : 0
sys_history  : 0

State -2:

name         : 1Y0M
sim_name     : equi_HA_1Y0M
coor_file    : data_sim/sys_equi/sys_equi/00_equi_HA/equi_HA_1Y0M.gro
top_file     : data_sim/sys_top/1Y0M_water_ion.top
tpr          : data_sim/sys_equi/sys_equi/00_equi_HA/equi_HA_1Y0M.tpr
mdp          : data_sim/sys_equi/sys_equi/00_equi_HA/equi_HA_1Y0M.mdp
xtc          : data_sim/sys_equi/sys_equi/00_equi_HA/equi_HA_1Y0M.xtc
edr          : data_sim/sys_equi/sys_equi/00_equi_HA/equi_HA_1Y0M.edr
log          : data_sim/sys_equi/sys_equi/00_equi_HA/equi_HA_1Y0M.log
nt           : 0
ntmpi        : 0
sys_history  : 0

State -1:

name         : 1Y0M
sim_name     : equi_CA_1Y0M
coor_file    : data_sim/sys_equi/sys_equi/01_equi_CA/equi_CA_1Y0M.gro
top_file     : data_sim/sys_top/1Y0M_water_ion.top
tpr          : data_sim/sys_equi/sys_equi/01_equi_CA/equi_CA_1Y0M.tpr
mdp          : data_sim/sys_equi/sys_equi/01_equi_CA/equi_CA_1Y0M.mdp
xtc          : data_sim/sys_equi/sys_equi/01_equi_CA/equi_CA_1Y0M.xtc
edr          : data_sim/sys_equi/sys_equi/01_equi_CA/equi_CA_1Y0M.edr
log          : data_sim/sys_equi/sys_equi/01_equi_CA/equi_CA_1Y0M.log
nt           : 0
ntmpi        : 0
sys_history  : 0


[31]:

ener_pd_1 = md_sys.sys_history[-2].get_ener(selection_list=['Volume'])
ener_pd_2 = md_sys.sys_history[-1].get_ener(selection_list=['Volume'])
ener_pd_3 = md_sys.get_ener(selection_list=['Volume'])

ener_pd_1['label'] = 'HA_constr'
ener_pd_2['label'] = 'CA_constr'
ener_pd_2.time = ener_pd_2.time + ener_pd_1.time.max()
ener_pd_3['label'] = 'CA_LOW_constr'
ener_pd_3.time = ener_pd_3.time + ener_pd_2.time.max()

ener_pd = pd.concat([ener_pd_1, ener_pd_2, ener_pd_3])



-Extract energy
gmx energy -f data_sim/sys_equi/sys_equi/02_equi_CA_LOW/equi_CA_LOW_1Y0M.edr -o tmp.xvg
-Extract energy
gmx energy -f data_sim/sys_equi/sys_equi/02_equi_CA_LOW/equi_CA_LOW_1Y0M.edr -o tmp.xvg
-Extract energy
gmx energy -f data_sim/sys_prod/prod_1Y0M.edr -o tmp.xvg

[34]:

ax = sns.lineplot(x="time", y="Volume",
                  hue="label",
                  data=ener_pd)

ax.set_xlabel('time')
ax.set_ylabel('Volume ($Å^3$)')
#ax.set_ylim(305, 322)

[34]:

Text(0, 0.5, 'Volume ($Å^3$)')

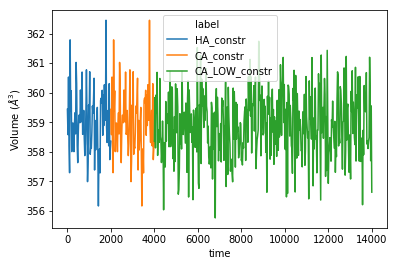

../_images/notebook_00_basic_example_22_1.png

5. Production

[19]:

md_sys.production(out_folder=prod_folder,
                  nsteps=prod_step,
                  dt=dt)


-Create the tpr file  prod_1Y0M.tpr
gmx grompp -f prod_1Y0M.mdp -c ../sys_equi/sys_equi/02_equi_CA_LOW/equi_CA_LOW_1Y0M.gro -r ../sys_equi/sys_equi/02_equi_CA_LOW/equi_CA_LOW_1Y0M.gro -p ../sys_top/1Y0M_water_ion.top -po out_prod_1Y0M.mdp -o prod_1Y0M.tpr -maxwarn 0
-Launch the simulation prod_1Y0M.tpr
gmx mdrun -s prod_1Y0M.tpr -deffnm prod_1Y0M -nt 0 -ntmpi 0 -nsteps -2 -nocopyright

[30]:

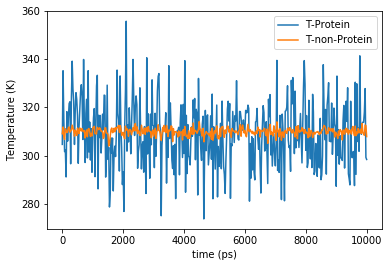

ener_temp = md_sys.get_ener(selection_list=['T-Protein', 'T-non-Protein'])

ax = ener_temp.plot(x='time')
ax.set_xlabel('time (ps)')
ax.set_ylabel('Temperature (K)')

-Extract energy
gmx energy -f data_sim/sys_prod/prod_1Y0M.edr -o tmp.xvg

[30]:

Text(0, 0.5, 'Temperature (K)')
../_images/notebook_00_basic_example_25_2.png
[ ]:
